Quick start

Heimdall runs wherever Node.js 20.19+ runs — macOS, Linux and Windows. Only one feature is macOS-specific: keeping the .p8 key in the macOS Keychain. On Linux and Windows you supply the key as a file path or inline PEM; everything else is identical.

Create an API key

Go to App Store Connect Users and Access → Integrations → Keys, generate a key, and download the .p8 file. Note the Key ID and Issuer ID from the same page.

If you will also ask about customers — purchase history, entitlement, refunds (StoreKit 2) — have your app's Bundle ID ready too. The wizard asks for it when you pick the monetization profile; skip that profile and it never asks.

You can download the .p8 file only once

Keep it somewhere safe until you've run setup. The role you give the key decides which permissions an agent gets — and what it can break if a prompt goes wrong. Pick the narrowest role that covers your use case; what each role opens is in Roles and permissions.

Install

Get ready for an MCP install you have not seen before.

Open a terminal.

npx -y @erayendes/asc-mcp setup

Store credentials once — the setup wizard

The wizard asks for what it needs to reach your App Store Connect account.

• Key ID and Issuer ID formats are checked as you type.
• The .p8 path accepts a drag-and-drop from Finder and re-prompts until it points at a real key file.
• It verifies the credentials against Apple before saving. If Apple rejects them, you re-enter.
• An optional Vendor number is asked for, needed only for sales and finance reports.
• The client picker asks which MCP clients should carry the profiles, with everything found on this machine already checked. Client configs are backed up first, then edited.
• Each row of the profile picker shows the profile's tool count and rough token cost; already-registered profiles are pre-checked. Which to choose is in Profiles.
• If you pick the monetization profile, it asks for the Bundle ID and the StoreKit environment (Sandbox / Production). Skip monetization and you're never asked.

At the end it shows the plan, asks once, and registers everywhere you chose. When it finishes, restart your client and say "check the App Store Connect connection" — that calls asc__status, which validates your credentials.

• The key is stored in the macOS Keychain. Off macOS it is referenced by file path.
• Everything non-secret goes to ~/.config/asc-mcp/config.json. Every profile reads this shared config.
• If Heimdall's setup has run before, it finds your saved Key/Issuer and offers to reuse them and just re-pick profiles.
• Xcode 27 installs plug-ins from a Git URL, so there is no config file — which is why it has no place in the setup wizard.

Is an AI agent installing Heimdall for you? The handoff protocol is in AGENTS.md: the agent adds the profiles with register, you run setup yourself for the key — your private key is for your eyes only, and the agent never sees it.

Where it registers

setup registers the profiles with every MCP client it finds. None of these clients share a config file, so this is the step that would otherwise be done once per client, by hand, in a different format each time.

Client	Where it goes	Written by
Claude Code	~/.claude.json	claude mcp add
Claude Desktop	~/Library/Application Support/Claude/claude_desktop_config.json	edited here
Codex	~/.codex/config.toml	codex mcp add
Antigravity	~/.gemini/config/mcp_config.json	edited here
Cursor	~/.cursor/mcp.json	edited here
Windsurf	~/.codeium/windsurf/mcp_config.json	edited here
VS Code	user MCP config	code --add-mcp

Adding and removing later

You don't have to set everything up front

Start with a couple of profiles and add more when a project needs them.

• Re-run setup — npx -y @erayendes/asc-mcp setup.
• It reuses your credentials and shows the pickers again.
• Clients and profiles come pre-checked as they stand. Check or uncheck; it registers and de-registers across every client you selected.

Reaching a tool without restarting

A profile you narrowed still knows about the rest of itself:

• asc__describe returns the full schema of any tool the profile owns — loaded or not.
• asc__call only reads. It lists prices and fetches apps, but never changes a price or submits a version.
• asc__load adds a whole sub-profile mid-session and makes its tools callable.

And if the tool is in another profile entirely? asc__search_tools searches all 982 operations plus StoreKit, names the sibling server that owns anything not loaded, and prints the command to add it. Install lean and let the server tell you what you are missing.

Heimdall in Xcode 27

1. Run npx -y @erayendes/asc-mcp setup once, if you have not. Your key goes into the Keychain; the plug-in has no other way to reach it.

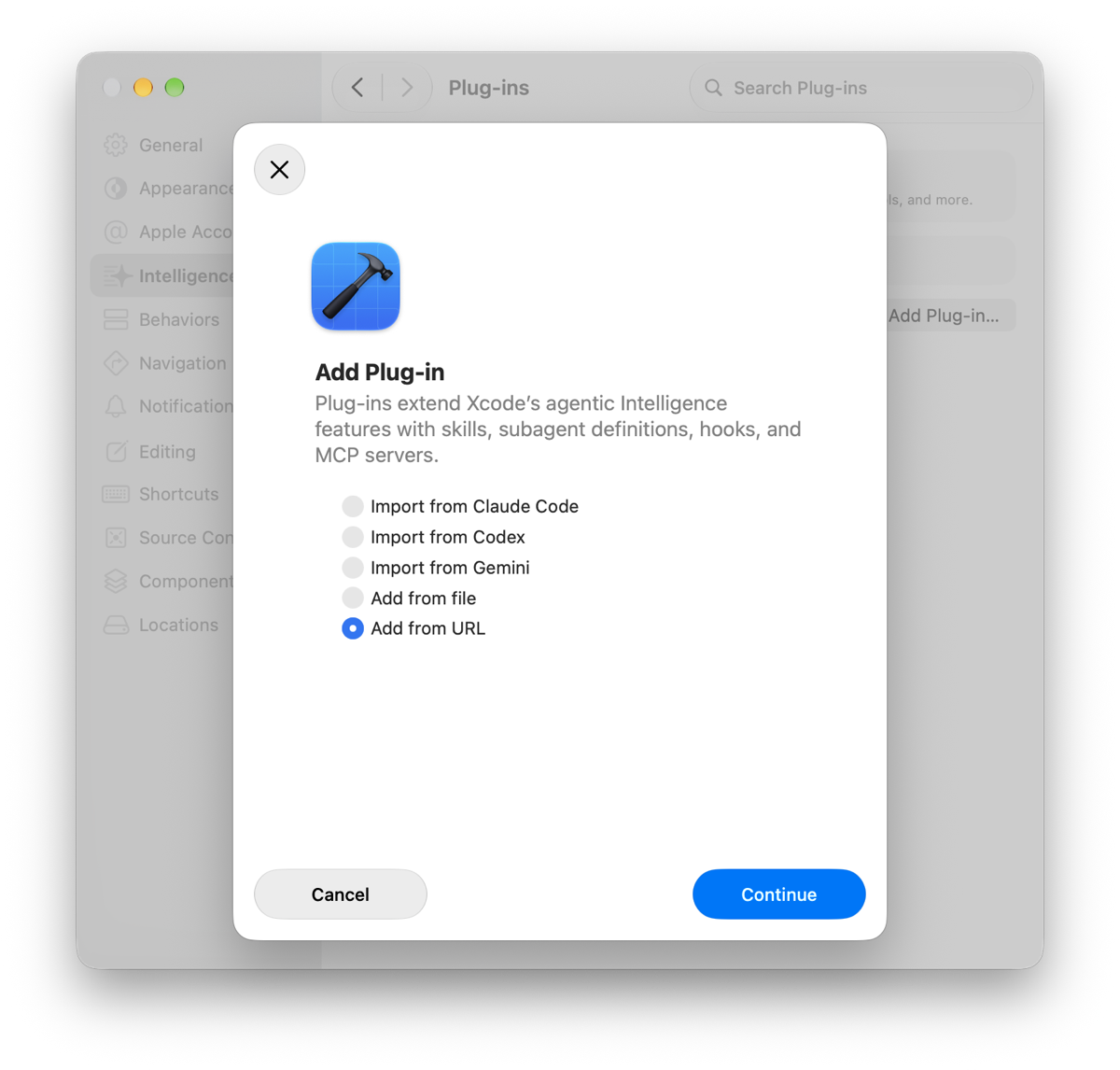

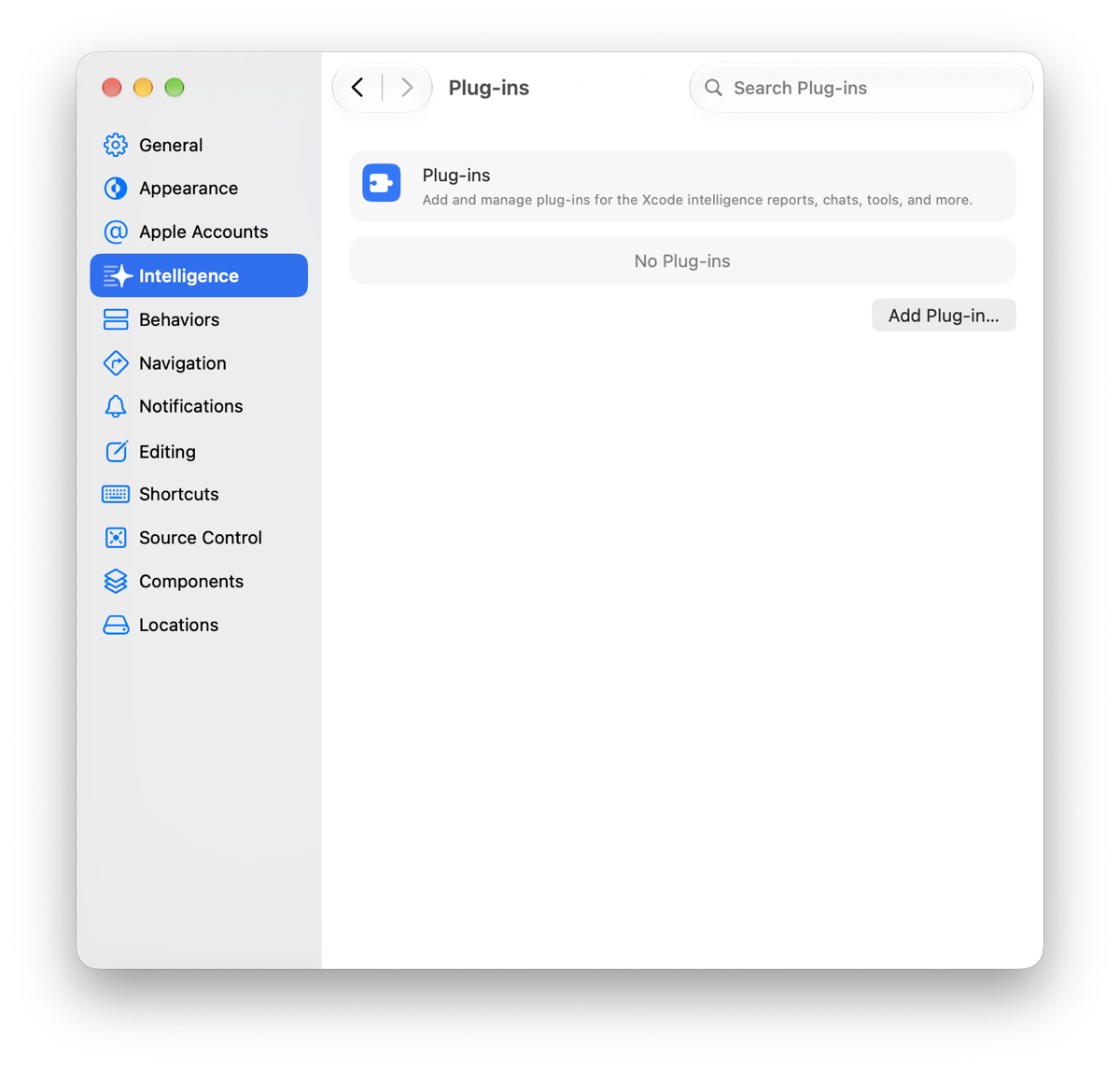

2. Xcode → Settings → Intelligence → Plug-ins → Add Plug-in…

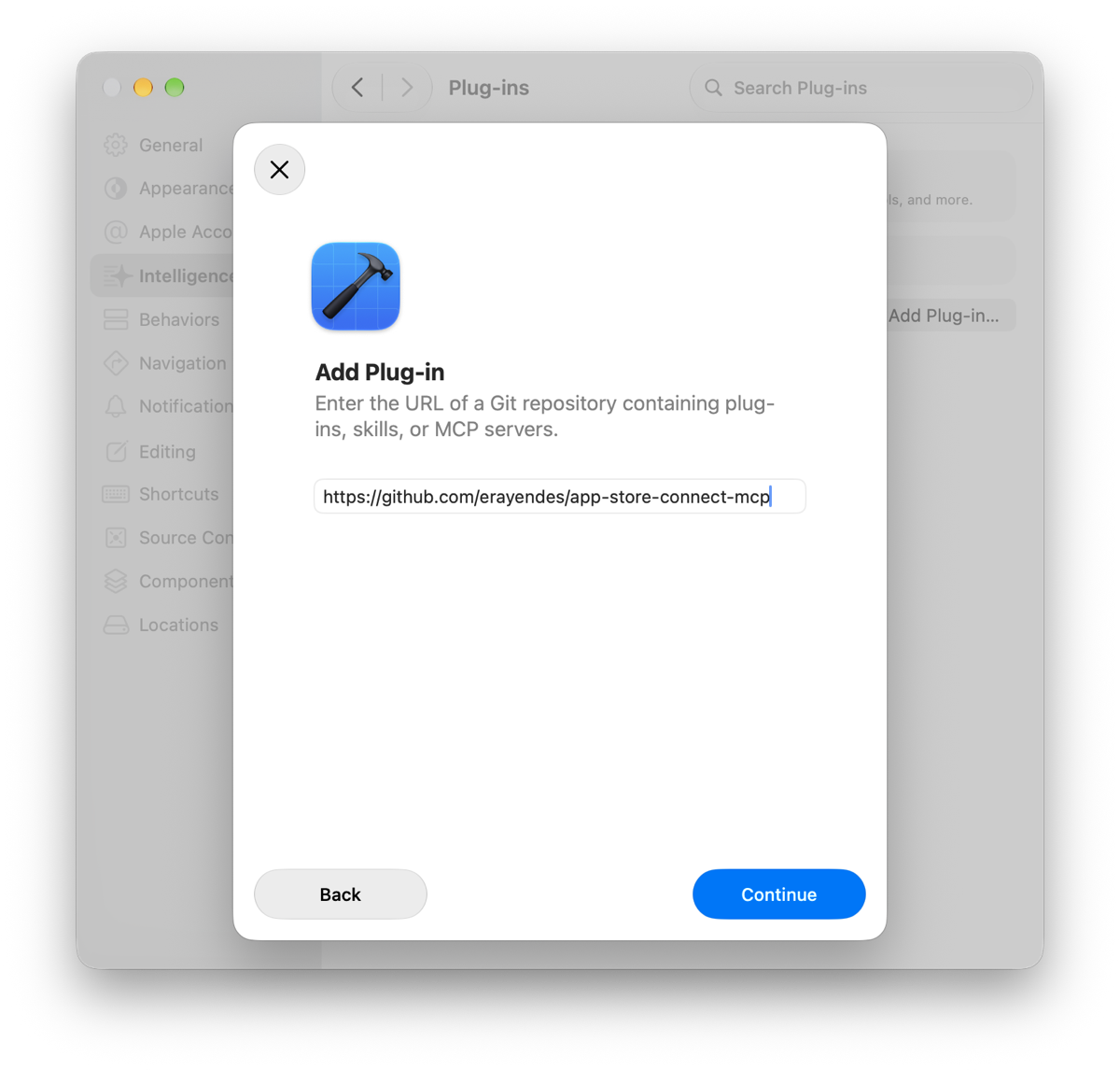

3. Choose Add from URL and paste https://github.com/erayendes/app-store-connect-mcp.

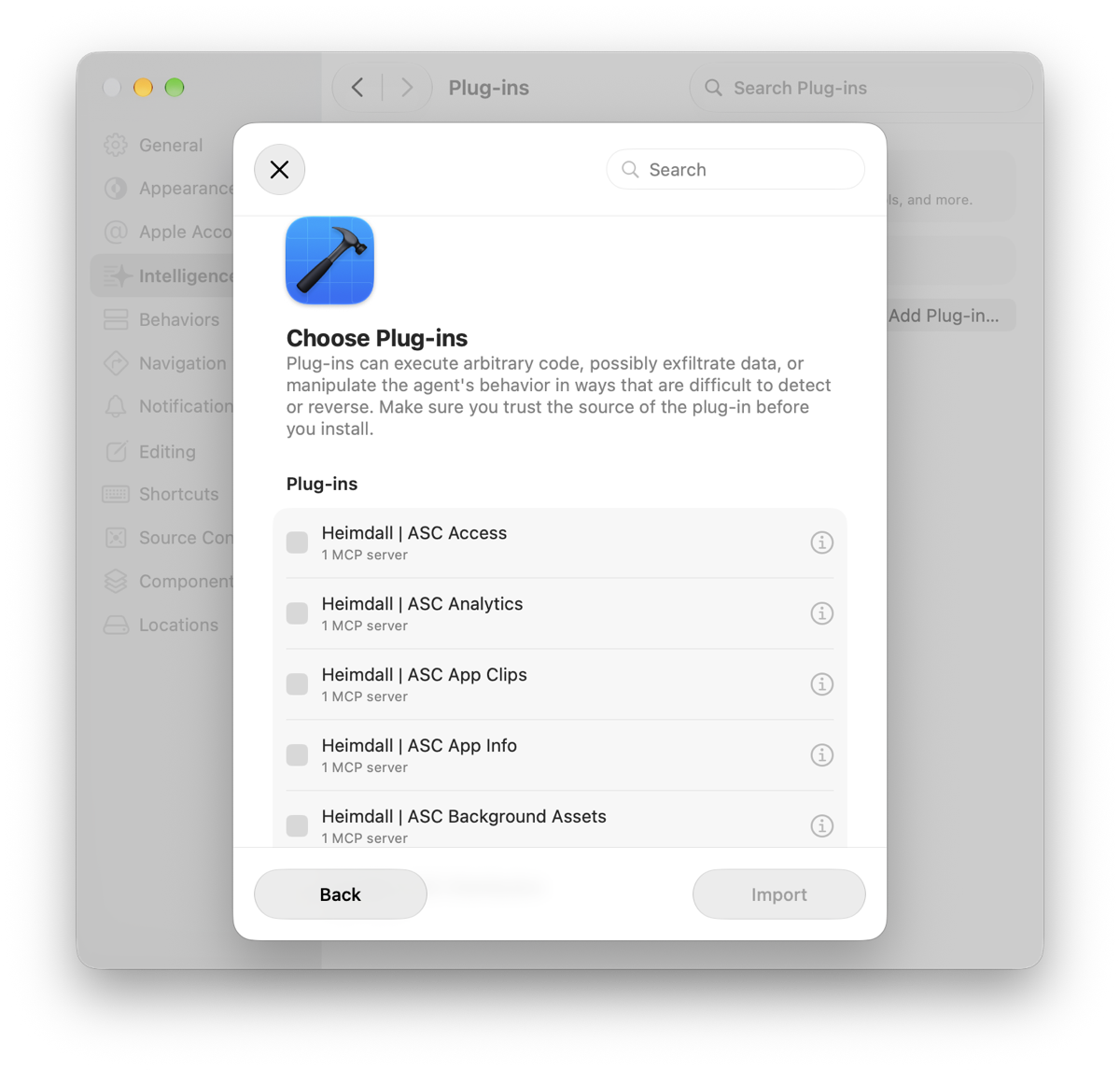

4. Xcode shows a "Choose Plug-ins" sheet with a checkbox per plug-in. Tick Heimdall | ASC Skill and the areas you need.



5. The first App Store Connect call asks for permission, the way any agent tool does.

From here on it is the Heimdall you know.

Need another area later?

Add from URL again with the same address: the sheet greys out what is already in as "Already imported", so tick the new one and Import. To drop an area, open its plug-in from the list and Delete Plug-in.

warning

Plug-ins go to the agents Xcode hosts, not to its built-in chat. Pick an agent from the conversation's model menu rather than a built-in model. The agent you pick launches the servers.

Troubleshooting

Symptom	What's going on	Fix
401 Unauthorized	Key ID, Issuer ID and .p8 don't all belong to the same key, or the key was revoked.	Re-run setup — it verifies the credentials against Apple before saving.
403 Forbidden	The key's role lacks permission for that operation.	Roles and permissions. Call asc__status with check_capabilities: true to see what is closed.
409 Conflict on a version update	App Store Connect only allows edits in certain version states.	A version in review or already released is locked.
Too many tools / context exhausted	You're running the combined server or --domains=all.	Register a single profile. asc__search_tools still finds what you need.
The tool I need isn't listed	It's in another profile.	Let the agent search: asc__search_tools names the sibling server and prints the command to add it.
429 Too Many Requests	Requests are paced to Apple's 3,600/hour limit and retried with backoff.	Persistent 429s mean something else is using your key too.
StoreKit tools missing	The App Store Server API needs a Bundle ID.	Re-run setup and enter the Bundle ID under monetization.

Uninstall

Unregister first. Re-run setup, uncheck everything in the profile picker, and it removes the profiles from every client you select.

Then the rest:

# The shared credential config
rm -rf ~/.config/asc-mcp

# The key in the macOS Keychain, if you used it
security delete-generic-password -s asc-mcp -a AuthKey_XXXXXXXXXX

# The package, only if you installed it globally
npm uninstall -g @erayendes/asc-mcp

warning

Revoking the API key itself happens in App Store Connect. Deleting the local copy does not revoke it.
